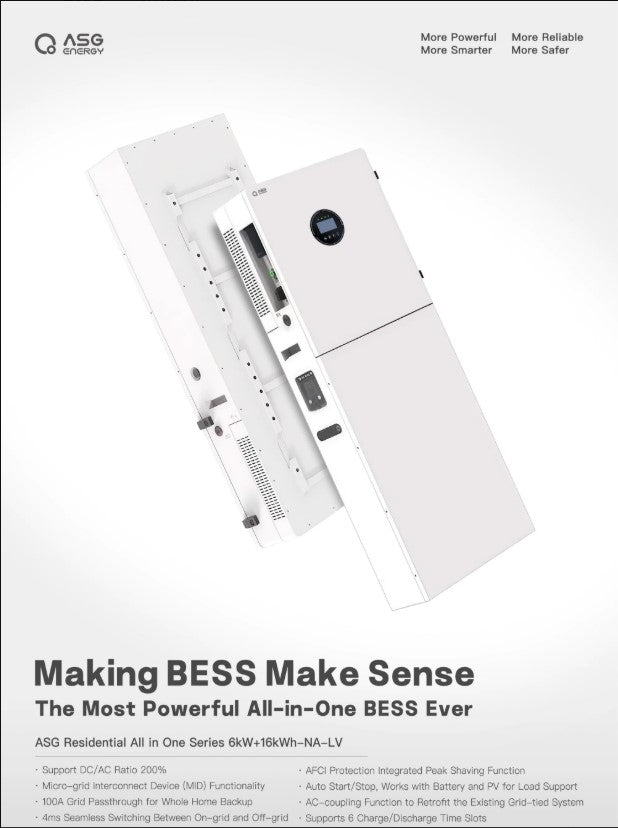

ASG 6kW All-in-One Solar Battery System | 16kWh LFP Storage + Hybrid Inverter
The Most Powerful Residential All-in-One ESS
Everything you need for whole-home solar backup in a single wall-mounted unit. The ASG 6kW+16kWh combines a hybrid inverter, MPPT solar charge controller, and 16kWh lithium iron phosphate battery into one compact, installer-friendly package.
Zero compromise on power. 6kW continuous output with 200% DC/AC ratio means your panels deliver maximum energy even on partly cloudy days. 120A charge/discharge current fills the battery fast and handles peak loads without breaking a sweat.
4ms switchover. When the grid drops, your home won't notice. Seamless transition to battery backup in 4 milliseconds, faster than a lightbulb flickers.
100A grid passthrough. Full whole-home backup, not just critical circuits. Run your AC, fridge, water heater, and EV charger simultaneously on backup power.

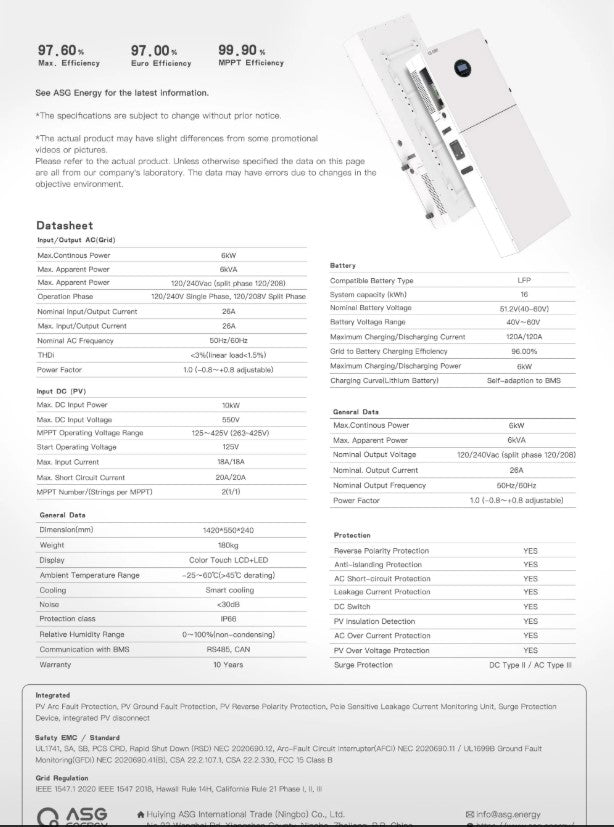

Key Specs
|
Inverter Output |
6kW / 6kVA continuous |
|
Battery Capacity |
16kWh (LFP, 6000+ cycles) |
|
Max Efficiency |
97.60% |
|
MPPT Efficiency |
99.90% |
|
DC Input |
7.8kW, 2 MPPT trackers |
|
MPPT Voltage Range |
125-425V (240-425V) |
|
Max PV Input |
550V / 600V range |
|
Charge/Discharge |
120A / 6kW |
|
Grid Passthrough |
100A continuous |
|
Backup Switchover |
4ms seamless |
|
Phase |
Split phase 120/240V |
|
Parallel Capability |
Up to 16 units (96kW) |
|
Battery Type |
LFP (Lithium Iron Phosphate) |
|
Battery Voltage |
40V-60V (low voltage, safe) |
|
Warranty |
10 years |
|
Weight |
120kg (264 lbs) |
|
Dimensions |
1420 x 550 x 240mm |
|
IP Rating |
IP55 (outdoor rated) |
|
Operating Temp |
-25°C to 60°C |
|
Display |
Color touch LCD + LED |
|
Communication |
RS485, CAN, Wi-Fi |
Certifications & Safety
- UL1741, UL1741SB (grid support)
- IEEE 1547.1 2020
- FCC 15 Class B
- CSA 22.2.107.1, CSA 22.3 No. 9
- Battery: UL1973, UL9540, UL9540A
- AFCI arc-fault protection integrated
- Rapid Shutdown (RSD) NEC 2020 compliant
- Anti-islanding, surge protection (DC Type II / AC Type II)
Why Solar Pros Choose the ASG
- One box, one install. Inverter + battery + MPPT + BMS in a single unit. Cut installation time in half.
- Retrofit ready. AC-coupling function lets you add this to existing grid-tied systems without rewiring.
- Scale when needed. Parallel up to 16 units for commercial projects (96kW total).
- Remote management. Change settings without internet connection. Monitor via app.
- Caribbean rated. IP55 outdoor enclosure, smart cooling, humidity resistant (0-100% non-condensing).
Ideal For
- Whole-home backup (3-5 bedroom homes)
- Off-grid and hybrid installations
- Retrofitting existing grid-tied solar systems
- Caribbean and tropical climate installations
- Commercial scaling (parallel up to 96kW)
What's Included
- ASG 6kW Hybrid Inverter + 16kWh LFP Battery (integrated unit)
- Wall mounting bracket
- DC disconnect
- User manual
- 10-year manufacturer warranty
Shipping
Ships from our warehouses to all Caribbean islands, Central America, USA, and Canada. Bulk pricing available for 3+ units. Contact us for freight quotes to your region.
*Exclusive pricing for registered solar professionals. Bulk discounts available for 5+ units.
Shipping & delivery
Orders ship from the nearest distribution hub. Delivery timelines depend on destination and whether the order consolidates into a scheduled container. Contact us for a firm ETA on your address.
Warranty
Genuine equipment supplied with full manufacturer warranty, registered in the purchaser's name. Warranty length and terms are set by the manufacturer and vary by product line.
